Dexko Global
Disc Brake Retrofit Kit For Dexter 7K Axles, Left Side, Boxed
SKU: K71-694-00
|
Reference Number: 193198
Brand: Dexter
$1,411.77
Buy at a location near you -
Find a Dealer
Business Customers can login to:
- See account pricing and available inventory
- Manage account invoices
| Dx Part No | Quantity | Description | |
| 090-008-01 | 1 | Yoke Assembly, 7K | |
| K71-693-00 | 1 | Caliper Replacement Kit, LH or RH | |
| 006-193-00 | 5 | Nut, Hex | |
| 088-023-00 | 1 | Thread Locker Sealant, Blue Liquid | |
| 091-004-00 | 2 | Brake Pad Assembly |
Alternate Item Numbers
6450699
Details
| Brake Type | Hydraulic Disc |
|---|---|
| Brake Size | 12-1/4" |
| Axle Capacity Rating Per Pair | 6K |
| Brake Orientation | Left Side |
| Brake Mounts To | Axle Brake Flange / Spindle |
| Brake Caliper / Cylinder Type | Disc |
| Fits Spindle | #42 2.250" Spindle |
| Brake Backing Plate Material | Steel |
| Brake Hub / Hub-Rotor Finish | E-Coated |
| Brake Caliper Finish | E-Coated |
| Caliper Mounting Bracket Finish | E-Coated |
| Brake Shoes / Pads Material | Semi-metallic |
| Brake Piston Finish | E-Coated |
| Brake Backing Plate Color | Black |
| Kit Includes | Yoke Bracket, Caliper, Pad Assembly & Mounting Hardware |
| Package Type | Retail Packaged |
Shipping Info
| Package Weight | 22 Lbs |
|---|

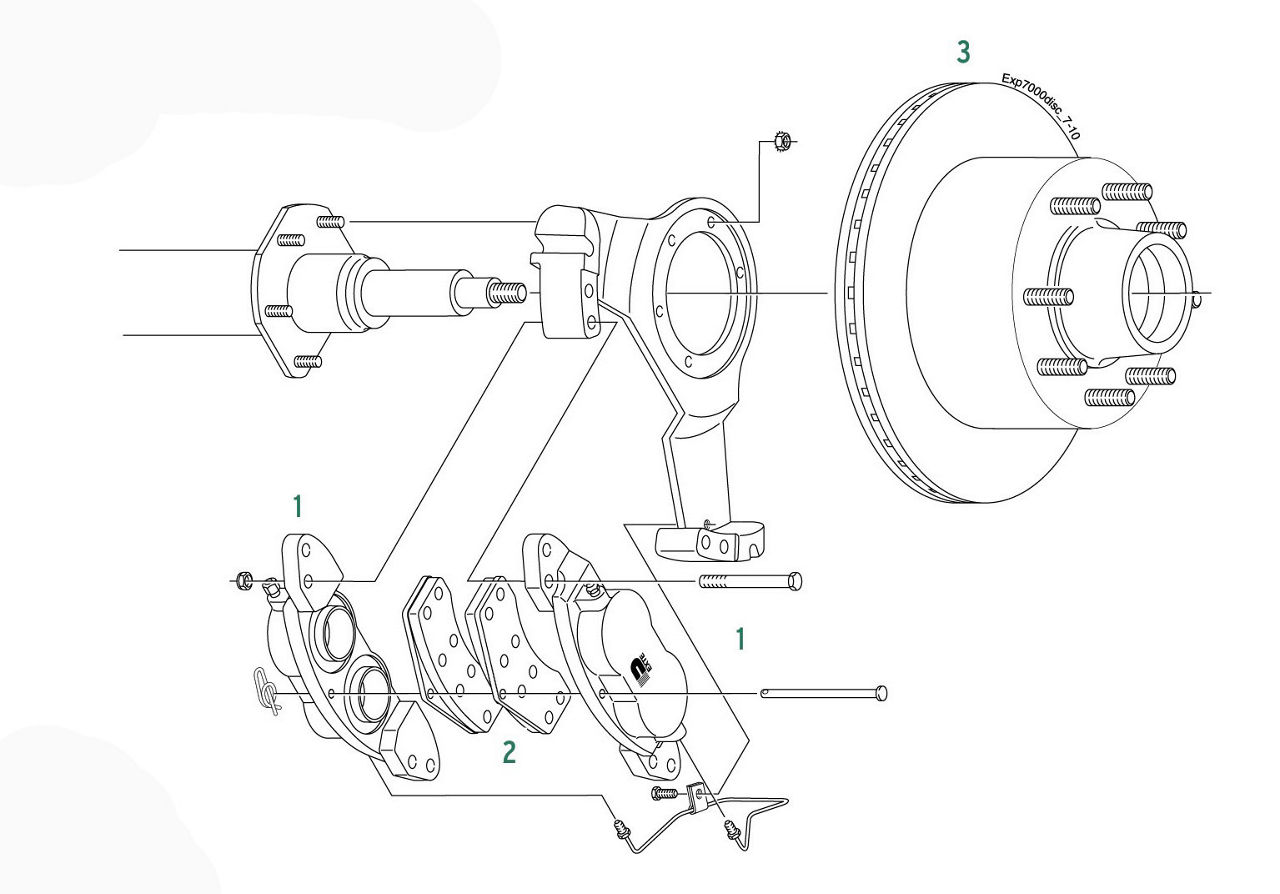

Service Parts
| PART # | REF # | DESCRIPTION | DIAGRAM # |
| K71-693-00 | 193214 | CALIPER WITH BOLTS, 1 WHEEL (BRAKE PADS NOT INCLUDED) | 1 |
| K71-629 | 193217 | BRAKE PAD KIT, 6,000-8,000 LB DEXTER AXLE, AXLE SET | 2 |
| D008-416-90 | 193165 | HUB-ROTOR | 3 |
| D008-416-92 | 193166 | HUB-ROTOR | 3 |
| D008-416-96 | 193167 | HUB-ROTOR | 3 |
| D008-416-97 | 193168 | HUB-ROTOR | 3 |
Replacement Components, Kodiak and Dexter
| PART # | REF # | DESCRIPTION |
| 25580 | 130800 | INNER BEARING |
| 14125A | 130600 | OUTER BEARING |
| 25520 | 136200 | INNER RACE |
| 14276 | 135800 | OUTER RACE |
| 10-36 | 159700 | GREASE SEAL, 3.376" OD X 2.25"ID, DOUBLE LIP |
| 38605 | 152200 | GREASE CAP, 2.72" OD, DRIVE-IN |
| 21-43-1 | 152400 | GREASE CAP, 2.72" OD, E-Z LUBE, DRIVE-IN |
| 85-1 | 155400 | CAP PLUG FOR E-Z LUBE CAP |
| LB20 | 144775 | STUD, 1/2" DIA., DRIVE-IN STYLE, 2.00" LONG, ZINC |
| 7-122 | 144600 | STUD, 1/2" DIA., DRIVE-IN STYLE, 1.99" LONG |
| 7-223 | 145300 | STUD, 9/16" DIA., DRIVE-IN STYLE, 2.00" LONG |
| X1023R | 140600 | WHEEL NUT, 1/2" CONE STYLE |
| 6-53 | 140800 | WHEEL NUT, 9/16" CONE STYLE |
