Dexter 2,500 lbs Per Pair Capacity (1,250 lbs Each) 7" x 1-3/4" Hydraulic Drum Trailer Brake, Left Side, 4-Bolt Mount, Black Painted Finish, Bulk
SKU: 23-398
|
Reference Number: 174010
Brand: Dexter
- Genuine Dexter Replacement Part
- CSA Approved Brakes
- All kits are USA made and assembled, and ready to install
- Best in class engineering, warranty, and track record
- Made from high quality domestic steel specifically designed to ensure maximum performance. No imported or substituted components
- Industry leading proven performance in stopping power
- Warranty: 5 Year Premium Warranty
- Mfg SKU: 023-398-00
$92.07
Buy at a location near you -
Find a Dealer
Business Customers can login to:
- See account pricing and available inventory
- Manage account invoices
Dexter 7" x 1-3/4" Left hand hydraulic complete brake assembly 2500lb capacity per pair. Mounts with 4 bolts(included). Nuts-6-17 and washers-5-8 sold separately.
• Fits standard 2,000-2,500lb axles with a 4 bolt pattern on the mounting flange.
• Left Hand(driver's side)
• Complete assembly ready to bolt on and wire
• For use with a 7" inside diameter drum
• The shoes are 1-3/4" wide
• Fits standard 2,000-2,500lb axles with a 4 bolt pattern on the mounting flange.
• Left Hand(driver's side)
• Complete assembly ready to bolt on and wire
• For use with a 7" inside diameter drum
• The shoes are 1-3/4" wide
Alternate Item Numbers
023-398-00, K23-398-00, HB01-070
Details
| Brake Type | Hydraulic Drum |
|---|---|
| Brake Size | 7" x 1-3/4" |
| Axle Capacity Rating Per Pair | 2.5K |
| Brake Orientation | Left Side |
| Brake Backing Plate Mounting Bolt Holes | 4 |
| Brake Mounts To | Axle Brake Flange / Spindle |
| Brake Caliper / Cylinder Type | Single Servo |
| Mounting Bolt Size | 7/16"-20 |
| Brake Backing Plate Material | Steel |
| Brake Backing Plate Finish | Painted |
| Kitted Options With Hardware | K23-398-00 |
| Brake Backing Plate Color | Black |
| Mounting Hardware | Not Included |
| Package Type | Bulk Packaged |
Shipping Info
| Package Height | 2.85 inches |
|---|---|
| Package Width | 11.5 inches |
| Package Length | 11.5 inches |
| Package Weight | 10 Lbs |

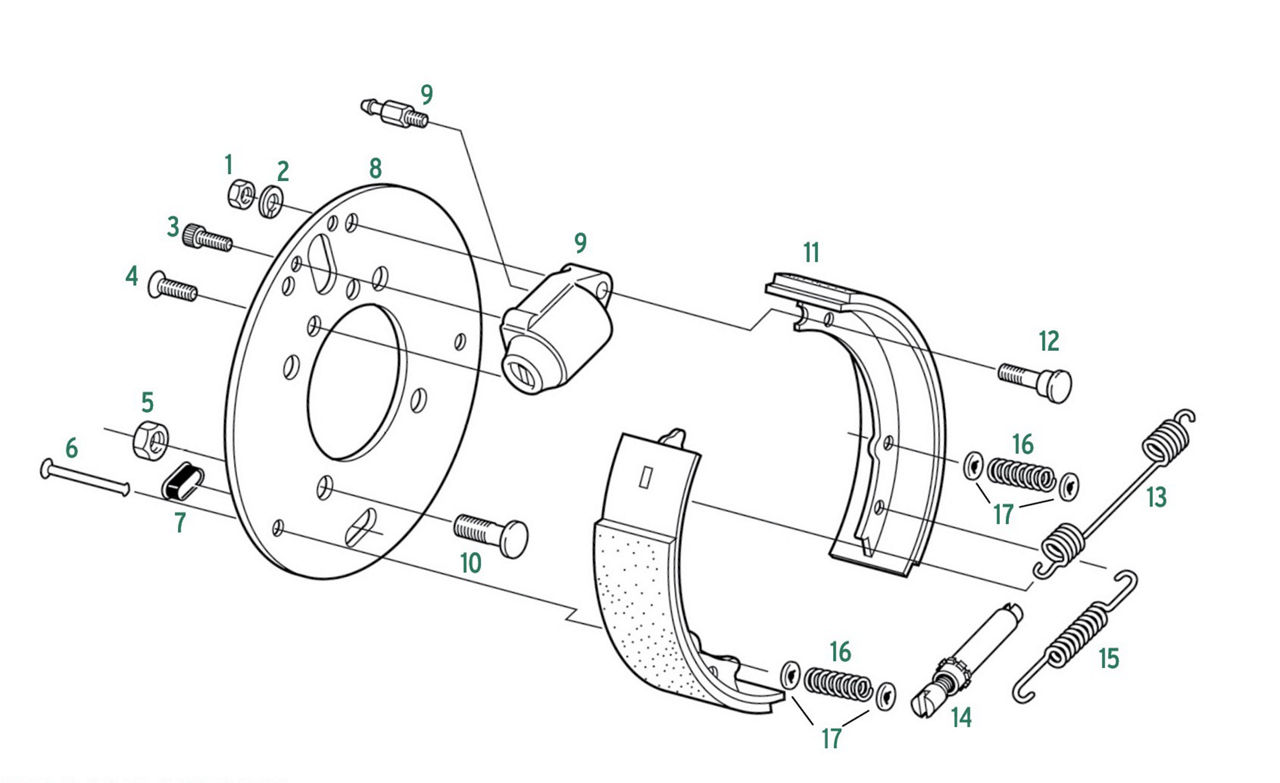

| PART # | REF # | DESCRIPTION | DIAGRAM # |
| 38N | 077600 | 3/8"-24 HEX NUT | 1 |
| 38LW | 191600 | 3/8" LOCKWASHER | 2 |
| 6-17 | 191800 | 7/16"-20 BRAKE MOUNTING HEX NUT | 5 |
| BP10-220 | 225100 | ADJUSTER SLOT PLUG, 4 PACK | 7 |
| 54-80-3 | 233105 | WHEEL CYLINDER ASSEMBLY | 9 |
| D007-041-00 | 190960 | 7/16"-20 PRESS-IN BRAKE MOUNTING STUD | 10 |
| BP04-050 | 204700 | SHOE & LINING | 11 |
| 38-72 | 235033 | ANCHOR POST | 12 |
| 46-126 | 215905 | SHOE RETURN SPRING | 13 |
| BP10-045 | 222100 | ADJUSTER | 14 |
| 46-127 | 220950 | ADJUSTER SPRING | 15 |
| 46-6 | 211502 | SHOE HOLD DOWN SPRING | 16 |
| 35-1 | 211506 | CLIP FOR SHOE HOLD DOWN SPRING | 17 |
